The Four Core Technologies (4-in-1)

The most common combination for a
professional or high-end home-use machine is 40KHz Ultrasonic Cavitation, Multi-Polar Radio Frequency (RF), Vacuum RF, and a handle for the
face/neck, such as a Tripolar/Quadrupolar RF.

1. 40KHz Ultrasonic Cavitation (The "Fat Blaster")

• Function: Fat Reduction and Cellulite Reduction.
• How it Works (The Cavitation Effect): The machine emits powerful low-frequency sound waves (typically at 40,000 Hz, or 40KHz) deep into the fatty tissue. These waves create microscopic, high-pressure bubbles within the fat cells. When these bubbles rapidly expand and collapse (implode), the force is strong enough to rupture the fat cell membranes.
• Result: The contents of the fat cells (triglycerides, water, and glycerol) are released into the fluid between the cells (interstitial fluid). The body's lymphatic system then naturally rains this waste, and the liver processes it for excretion as waste.

2. Multi-Polar Radio Frequency (RF) (The "Skin Tightener")

• Function: Skin Tightening, Anti-Aging, and Collagen Stimulation.
• How it Works: The RF probes (which have multiple contact points
  or "poles") emit electromagnetic waves that generate gentle,
  deep, controlled heat when they contact the skin. This heat is delivered
  to the deeper layers (dermis and subcutaneous tissue), where the
  body's natural response is activated.
• Result: The heat causes existing collagen fibers to immediately contract
  (tightening the skin instantly) and stimulates fibroblasts to
  produce new collagen and elastin fibers over time, leading to smoother
  texture, reduced wrinkles, and firmer, tighter skin.

3. Vacuum RF (The "Contouring & Detoxifier")

• Function: Cellulite Smoothing, Lymphatic Drainage, and Contouring.
• How it Works: This handle combines two functions in one head:
• Suction (Vacuum): Applies negative pressure to lift and gently massage the skin and underlying fat layer. This
  mechanical action breaks up tough, fibrous cellulite tissue.
• RF Heat: The heat applied during the suction process further melts fat and boosts blood flow.
• Result: The suction and massage action greatly accelerates lymphatic
  drainage, which is crucial for moving the broken-down fat out of the body quickly. It also improves circulation to the area, smoothing out the appearance of cellulite.

4. Facial RF Handle (Tripolar/Quadrupolar)

• Function: Targeted Facial and Neck Tightening.
• How it Works: This is essentially a smaller version of the Multi-Polar RF probe, designed with fewer and smaller contact points for the delicate skin of the face, neck, and sometimes the eyes. It uses the same heat-based technology to stimulate collagen.
• Result: Lifts and firms the jawline, neck, cheeks, and forehead, helping to reduce the appearance of fine lines and wrinkles.

Recommended Sequence:

40K Cavitation

DESTROYS fat cells

1st (To liquefy the fat)

Multi-Polar RF

TIGHTENS loose skin

2nd (To firm skin after fat loss)

Vacuum RF

DRAINS/CONTOURS the area

3rd (To help eliminate the released
fat)

Facial RF

LIFTS face/neck skin

Separate session or final step

Safety First & Preparation

DO NOT USE IF YOU:

• Are pregnant or breastfeeding.
• Have a pacemaker, metal implants, or electronic devices in the treatment area.
• Have severe health conditions (cancer, epilepsy, heart disease, etc.).
• Have open wounds, severe sunburn, or damaged skin in the treatment area.

💧 Pre-Treatment
Essentials:

1. Hydrate: Drink at least 1-2 liters of water before and after your session.
   This is CRITICAL for flushing out the dissolved fat.
2. Clean Skin: Clean the treatment area (e.g., abdomen, thighs) thoroughly.
3. Apply Gel: Apply a generous layer of conductive ultrasonic gel to the entire treatment area. This is essential for safety and effectiveness. Never use the machine on dry skin.

🛠️ Machine Setup &
Power

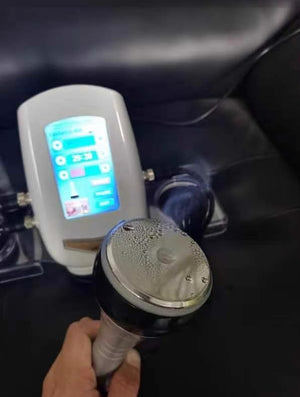

1. Unpack & Inspect: Place the main unit on a stable, flat surface.

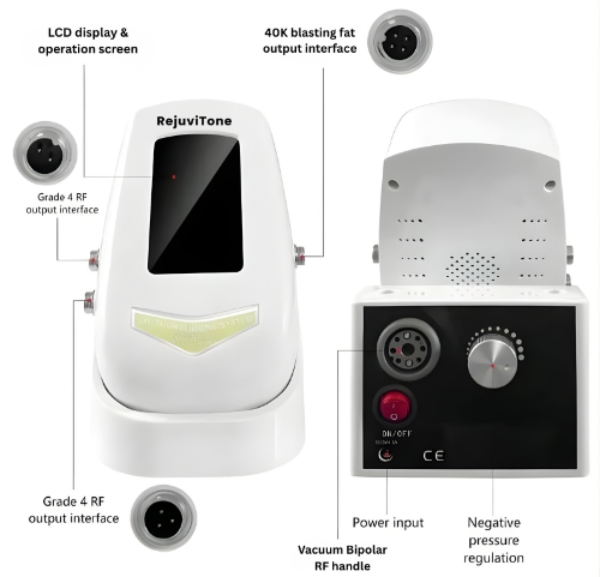

2. Connect Handles: Identify the desired handle (start with the 40KHz
   Cavitation Head). Gently plug its connector into the corresponding port on the back/side of the machine.
3. Power On: Plug in the machine and press the main power switch (usually on the back). The screen should illuminate.

1. 🥇 The Main Event:
40KHz Ultrasonic Cavitation (Fat Reduction)

This is the fat-reduction step. Do this first.

1. Select

On the screen, select the 40K
Cavitation or Ultrasound function.

2. Set Time

Set the timer to 15–20 minutes per treatment area (e.g., per side of the abdomen). Max 30 minutes total per session, do not treat the same spot daily.

3. Set Intensity

Start on the lowest intensity
level (Level 1 or 2). Gradually increase only if comfortable. You should hear a slight buzzing or ringing in your ears—this is normal. If you feel pain or discomfort, reduce the intensity immediately.

4. Treat

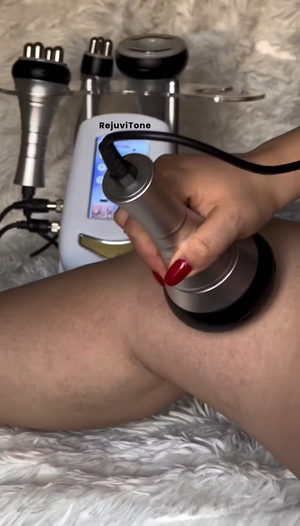

Press 'Start'. Place the probe on
the gel-covered skin and move it slowly in continuous, circular or sweeping motions. Maintain constant contact.

NEVER hold the probe still in one spot.
Avoid bony areas (hips, ribs).

2. 🥈 Skin Tightening & Lymphatic Drainage (RF & Vacuum)

After cavitation, use a Radio Frequency (RF) handle to promote skin tightening, and the Vacuum RF handle to aid lymphatic drainage.

Tightens skin & stimulates collagen production in body areas.

Time: 10–15 minutes. Intensity: Start low. The skin should feel warm, but not hot or painful. Move slowly in circles or sweeping motions.

RF Face/Tripolar Handle

Tightens skin & reduces wrinkles on the face/neck.

Time: 5–10 minutes. Intensity: Very low. Use gentle, upward motions.

Vacuum RF Handle

Assists lymphatic drainage to expel liquified fat.

Time: 10–15 minutes. Suction: Adjust the vacuum pressure knob (usually on the back) for light suction. Move slowly, guiding the tissue towards the nearest lymph nodes (e.g., toward the armpit or groin).

3. ❄️ Cold Hammer
(Optional Finish)

• Function: Soothes the skin, reduces redness, and minimizes pores after heat-based treatments (RF).
• Time: 5 minutes.
• Motion: Gentle, circular, or patting motion over the treated area.

✅ Post-Treatment Care

1. Clean Up: Wipe the treatment handles and the treated skin with a warm, damp cloth to remove excess gel.
2. Hydrate: Continue to drink water for the next 72 hours.
3. Exercise: Engage in light cardio (brisk walk, elliptical) for 20-30 minutes immediately after your session to stimulate the lymphatic system.
4. Diet: Avoid alcohol, caffeine, and heavy fatty/sugary foods for 48-72 hours post-treatment.
5. Frequency: Treat the same area 2-3 times per week, leaving at least 48-72 hours between sessions for the body to metabolize the fat.

RejuviTone 4-in-1 Ultrasonic
Cavitation Machine

Quick Start Guide

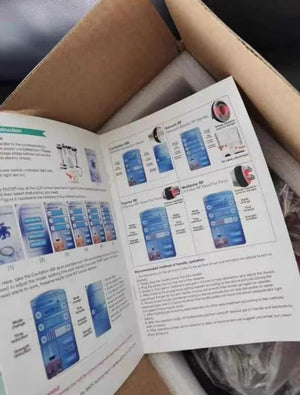

1. Unbox & Inspect 📦

• Remove the machine and all attachments from the box.
• Check for any damage or missing parts.

2. Plug In & Power On 🔌

• Connect the machine to a power source.
• Press the power button to turn on.
• The LED display should light up.

3. Choose Your Attachment 💆‍♀️

• Ultrasonic Cavitation: For stubborn fat & body contouring.
• RF (Radio Frequency): For skin tightening & rejuvenation.
• Vacuum Suction: For lymphatic drainage & cellulite reduction.
• LED Therapy: For skin tone improvement & elasticity.

4. Set Time & Intensity ⏱️

• Use the control panel to adjust time, power, and mode.
• Start with low intensity for first-time use.

5. Apply Gel & Begin Treatment 🧴

• Apply a thin layer of conductive gel to the treatment area.
• Move the attachment in circular motions on your skin.

6. Post-Treatment Care 🌿

• Wipe off any remaining gel.
• Drink water to help flush toxins.
• Clean the attachments after each session.

7. Turn Off & Store 📴

• Press the power button to turn off.
• Unplug the machine.
• Store in a cool, dry place.

⚙️ 4-in-1 Body Sculpting Machine – Technical Specifications

Functions

4-in-1 Cavitation + RF (Radio Frequency) + Vacuum + LED Light

Cavitation Frequency 40 kHz

RF Frequency 3 MHz

Power Supply 110–240 V AC, 50–60 Hz

Rated Output Power 50 W

Output Voltage 24 V DC (typical)

Display 4.3″ Touchscreen

Vacuum Pressure –0.09 MPa (approx. 675 mmHg)

Material ABS + Metal (Instrument Housing)

Dimensions ≈
14.6 × 12.6 × 6.7 inches
(37 × 32 × 17 cm)

Net Weight ≈ 10.6 lbs (4.8 kg)

Operation Modes Continuous / Pulsed

Treatment Heads

1 × 40K Cavitation Probe 1 × Tripolar RF Head (Face)

1 × Quadrupolar RF Head (Body)

1 × Vacuum RF Handle

Target Areas Face, neck, abdomen, arms, thighs, buttocks, waist

Recommended Usage 15 – 20 minutes per area every 2 – 3 days

Working Principle Ultrasonic cavitation breaks down fat deposits; RF heats deep dermis to tighten skin; vacuum suction enhances lymphatic drainage and circulation.

Safety Certification CE marked (home / spa use)

💡 Usage & Safety Notes

• Always apply conductive gel before use.
• Do not stay on one spot for more than 3 seconds.
• Avoid bony areas or metal implants.
• Clean each probe after every session.
• Suitable for home or spa use – not medical grade
